Description

Serie 1

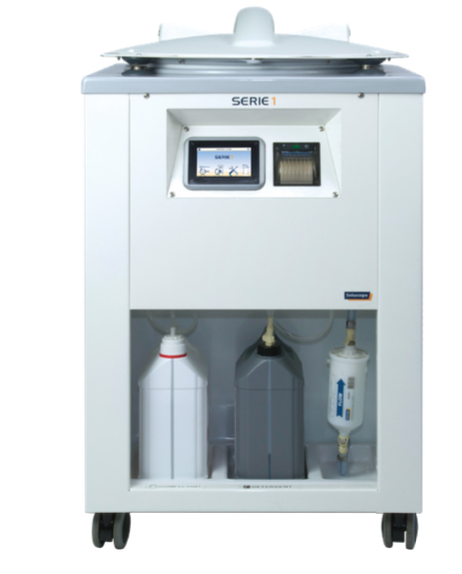

Innovative technology in a refined & compact washer-disinfector

The Soluscope Serie 1 is a high-performance, ISO 15883 compliant reprocessor designed for maximum efficiency in a small footprint. It offers advanced electronic traceability and an optional embedded printer, delivering high-end technology for an entry-level solution.

Reliable and easy to use

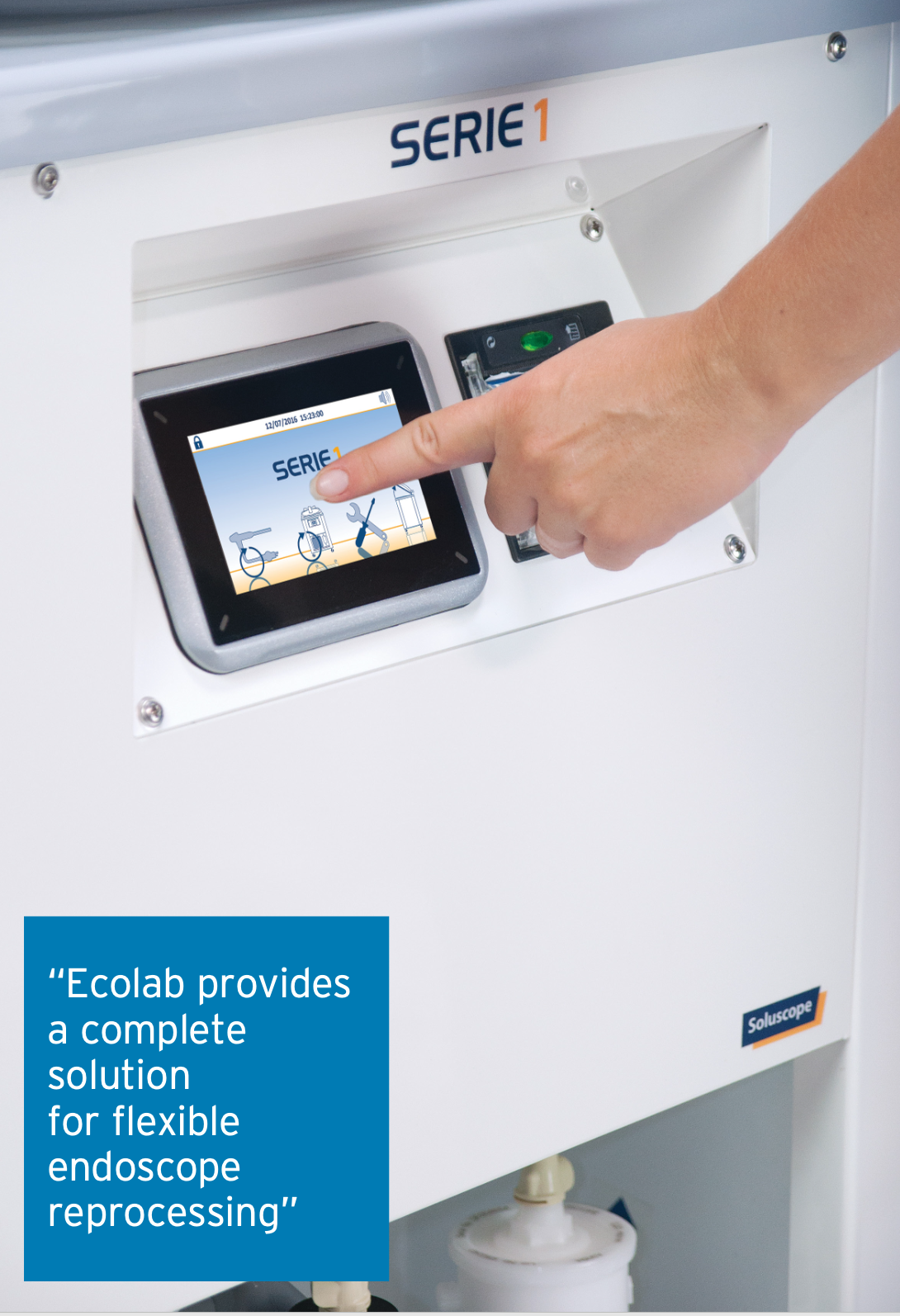

Featuring a user-friendly touchscreen, the Serie 1 ensures a fully automated and safe process. With an optional validated pre-filtration system and compatibility with both Peracetic Acid and Glutaraldehyde, it provides a flexible and proven disinfection solution for any facility.

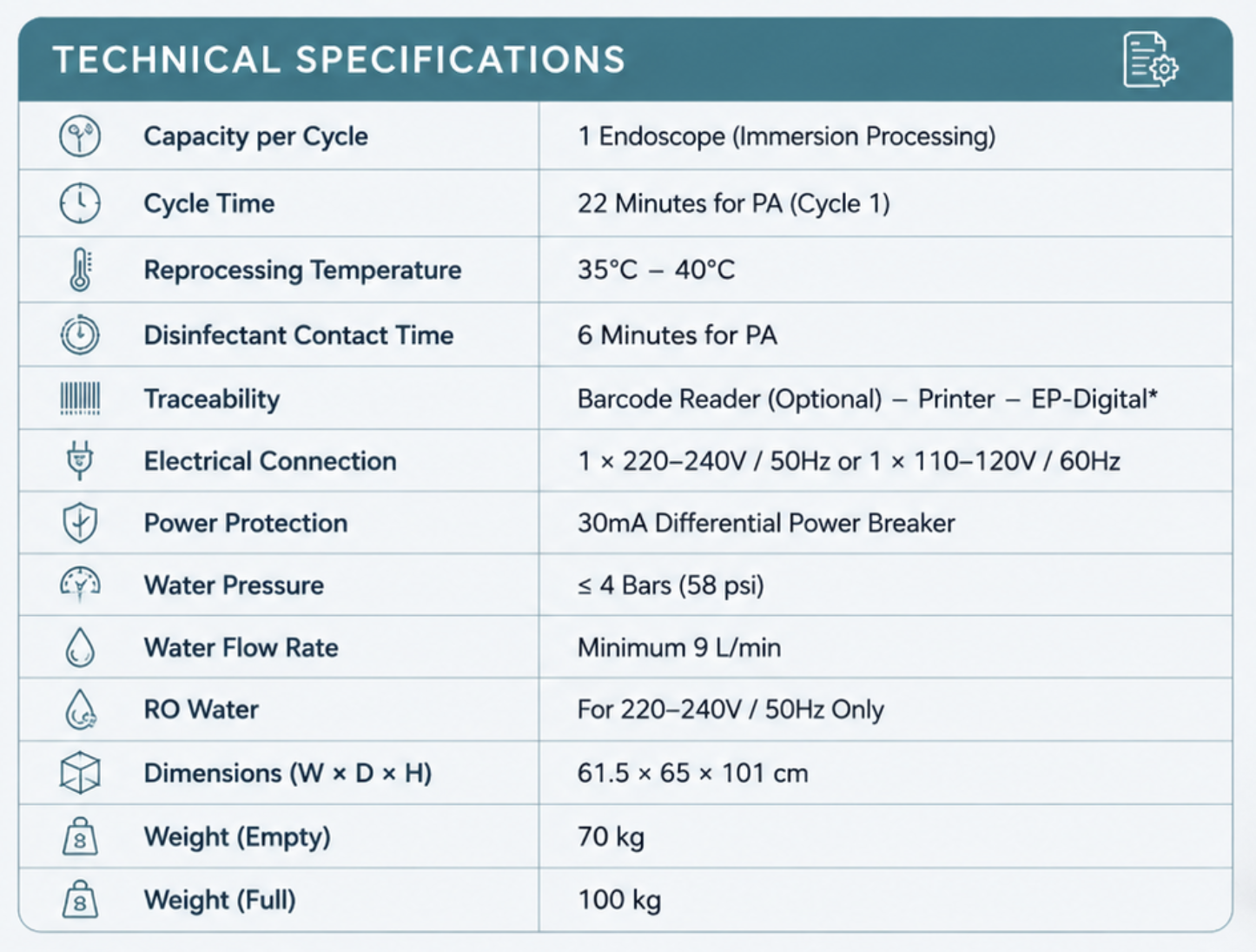

• Technical specifications

Capacity per cycle: 1 endoscope, processing by immersion

Reprocessing cycle time: 22 minutes for PA (cycle 1)

Reprocessing temperature: 35 to 40°C

Disinfectant contact time: 6 minutes for PA

Traceability: Barcode reader (optional) – Printer – EP-Digital*

Electrical connection: 1 x 220-240 V / 50 Hz or 1 x 110-120 V / 60 Hz with 30mA differential power breaker

Water pressure: ≤ 4 bars (58 psi)

Water flow rate: 9 L / min minimum

RO water: for 220-240V/50Hz only

Dimensions (W x D x H) : 61.5 x 65 x 101 cm (closed lid and)

Weight (empty): 70 kg

Weight (full): 100 kg

*for 220-240V/50Hz only
